產品介紹
插頭&線材零組件類
美國 NEMA L21-30P 鎖扣式 AC插頭 5PIN 接地, 30A 120/208V
產品型號
PHP-363額定電壓
120/208V額定電流
30A顏色
黑色或可依照需求提供客制化產品材質
PVC最小訂購量
500PCS供給能力
10000PCS/MonthCertificate

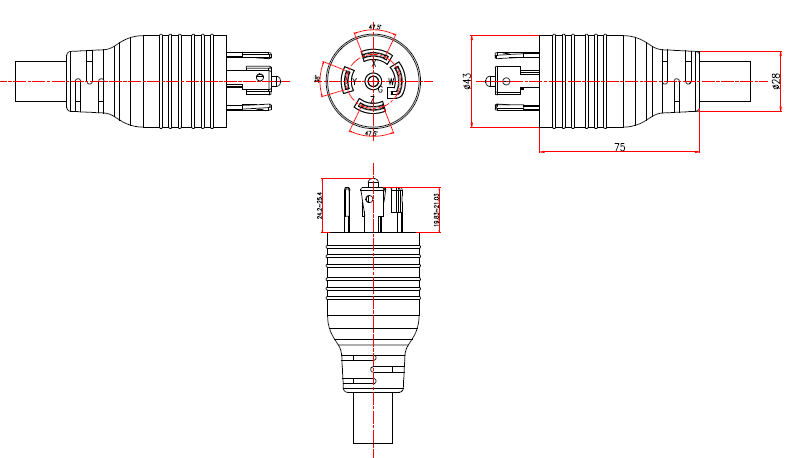

產品圖面
規格說明
適用電線 | SJT AWG 10/5C 12/5C |
SJTW AWG 10/5C 12/5C | |
SJTO AWG 10/5C 12/5C | |
SJTOW AWG 10/5C 12/5C | |
SJTOO AWG 10/5C 12/5C | |
SJTOOW AWG 10/5C 12/5C | |
ST AWG 10/5C 12/5C | |
STW AWG 10/5C 12/5C | |
STO AWG 10/5C 12/5C | |
STOW AWG 10/5C 12/5C | |
STOO AWG 10/5C 12/5C | |
STOOW AWG 10/5C 12/5C | |
SOOW AWG 10/5C 12/5C | |
參考標准 | UL 817 , NEMA L21~30P |
RoHS 符合 | 是 |
REACH 符合 | 是 |
