Products
Plugs & Wiring parts

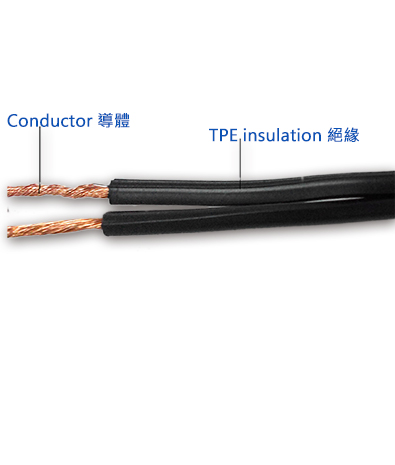

Japan Halogen Free Wire & Cable QFF/F ; QQCTFK/F
Color
Black or customized products can be offered upon requestsMaterial
TPEMin. Order Q’ty
1000MProduction capacity
100000M/MonthCertificate
Specifications
| Type | Conductor | Insulation | Jacket | |||
| Area | Construction | Thickness | OD | Thickness | OD | |
| mm2 | (NO./mm) | mm | mm | mm | mm | |
| QFF/F | 2*0.75 | 30/0.18 | - | - | 0.80 | 2.8*5.6 |
| 2*1.25 | 50/0.18 | - | - | 0.80 | 3.2*6.4 | |
| 2*2.00 | 37/0.26 | - | - | 0.80 | 3.5*7.0 | |
| QQCTFK/F | 2*0.75 | 30/0.18 | 0.6 | 2.40 | 1.00 | 4.3*6.6 |
| 2*1.25 | 50/0.18 | 0.6 | 2.70 | 1.00 | 4.6*7.3 | |
| 2*2.00 | 37/0.26 | 0.6 | 3.05 | 1.00 | 5.0*8.0 | |
| Product Description ￭ Bare stranded copper conductor. ￭ Polyethylene cords insulation. ￭ Rated temperature: 60℃ or 70℃ ￭ Rated Voltage:300V ￭ Standard: JCS C4509 Applications ￭ Suitable for indoor small electircal instruments. | ||||||
