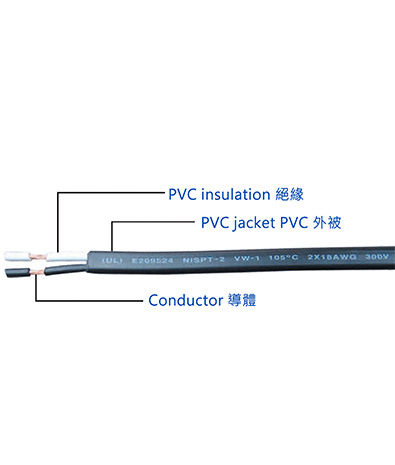

Canada PVC Insulated Sheathed Double Core Wire & Cable NISPT-1/NISPT-2
Color
Black or customized products can be offered upon requestsMaterial
PVCMin. Order Q’ty
1000MProduction capacity
100000M/MonthCertificate
Specifications
| Type | Conductor | Insulation | Jacket | |||||
| NO | AWG | Area | construction | Thickness | OD | Thickness | OD | |
| mm2 | (NO./mm) | mm | mm | mm | mm | |||
| NISPT-1 | 2 | 18 | 0.81 | 41/0.160 | 0.38 | 2.05 | 0.38 | 2.9*5.4 |
| NISPT-2 | 2 | 18 | 0.81 | 41/0.160 | 0.76 | 2.75 | 0.38 | 3.8*7.0 |
| 16 | 1.31 | 65/0.160 | 3.10 | 0.38 | 4.0*7.5 | |||
| Product Description ￭ Bare stranded copper conductor. ￭ PVC Insulation. ￭ PVC jacket. ￭ Rated temprature: 60℃ or 105℃ ￭ Rated Voltage: 300V ￭ Passed UL VW-1&CSA FT1Vertical flame test. ￭ Standard: CSA C22.2 Applications ￭ NISPT-1/NISPT-2 used For general internal wiring of electrical and electrical equipment. | ||||||||
