USA PVC Insulated Sheathed Single Core Wire & Cable 1007/1015
Color
Black or customized products can be offered upon requestsMaterial
PVCMin. Order Q’ty
1000MProduction capacity
100000M/MonthCertificate
Specifications
| Type | Conductor | Insulation Thickness | OD | |
| AWG SIZE | Construction | mm | mm | |
| UL1007 | 26 | 7/0.160 | 0.38 | 1.30 |
| 24 | 11/0.160 | 0.38 | 1.45 | |
| 22 | 17/0.160 | 0.38 | 1.60 | |
| 20 | 26/0.160 | 0.38 | 1.80 | |
| 18 | 34/0.180 | 0.38 | 2.10 | |
| 16 | 65/0.160 | 0.38 | 2.40 | |
| UL1015 | 26 | 7/0.160 | 0.76 | 2.05 |
| 24 | 11/0.160 | 0.76 | 2.20 | |
| 22 | 17/0.160 | 0.76 | 2.40 | |
| 20 | 26/0.160 | 0.76 | 2.55 | |
| 18 | 34/0.160 | 0.76 | 2.80 | |
| 16 | 65/0.160 | 0.76 | 3.10 | |
| 14 | 41/0.254 | 0.76 | 3.50 | |
| 12 | 65/0.254 | 0.76 | 3.90 | |
| 10 | 105/0.254 | 0.76 | 5.10 | |

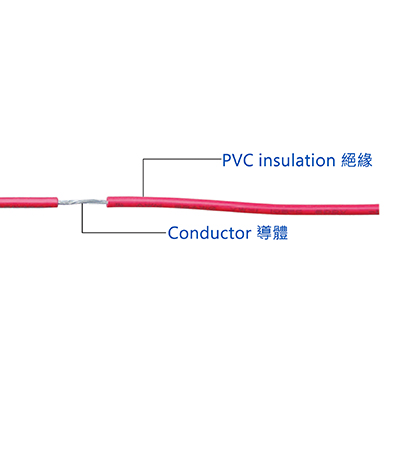

| Product Description ￭ Tinned or bare copper conductor. ￭ PVC Insulation. ￭ Rated temperature: 80℃ 105℃ ￭ Rated Voltage: 300V 600V ￭ Passed CSA FT1 vertical flame test. ￭ Standard: CSA C22.2 Applications ￭ For general internal wiring of electrical and electrical equipment. | ||||
