USA PVC Insulated Sheathed Double Core Wire & Cable SVT/SVTO
Color
Black or customized products can be offered upon requestsMaterial
PVCMin. Order Q’ty
1000MProduction capacity
100000M/MonthCertificate
Specifications
| Type | Conductor | Insulation | Jacket | |||||
| No. | AWG | Area | construction | Thickness | OD | Thicknet | OD | |
| mm2 | (NO./mm) | mm | mm | mm | mm | |||
| SVT SVTO | 2 | 18 | 0.81 | 41/0.16 | 0.38 | 2.05 | 0.76 | 5.90 |
| 2 | 16 | 1.31 | 65/0.16 | 0.38 | 2.30 | 0.76 | 6.40 | |
| 3 | 18 | 0.81 | 41/0.16 | 0.38 | 2.05 | 0.76 | 6.30 | |
| 3 | 16 | 1.31 | 65/0.16 | 0.38 | 2.30 | 0.76 | 6.80 | |
| SVT SVTO (Filler) | 2 | 18 | 0.81 | 41/0.16 | 0.38 | 2.05 | 0.76 | 6.20 |
| 2 | 17 | 1.05 | 52/0.16 | 0.38 | 2.20 | 0.76 | 6.60 | |
| 3 | 18 | 0.81 | 41/0.16 | 0.38 | 2.05 | 0.76 | 6.90 | |

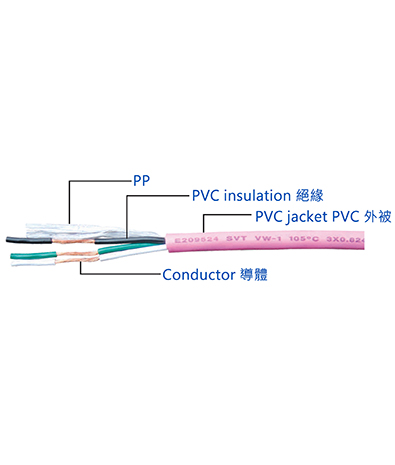

| Product Description ￭ Bare stranded copper conductor. ￭ PVC Insulation. ￭ PVC jacket. ￭ Rated temprature: 60℃ or 105℃ ￭ Rated Voltage: 300V ￭ Passed UL VW-1Vertical flame test. ￭ Standard: UL62 Applications ￭ SVT used in light-duty portable cordage of tools and mixers. | ||||||||
