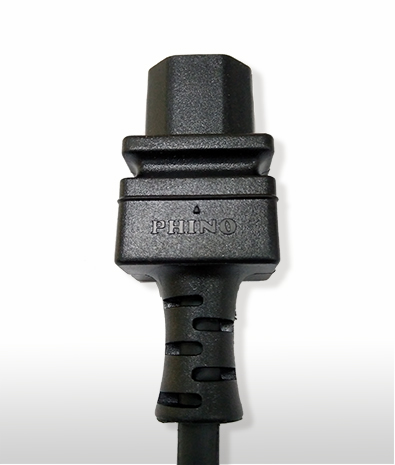

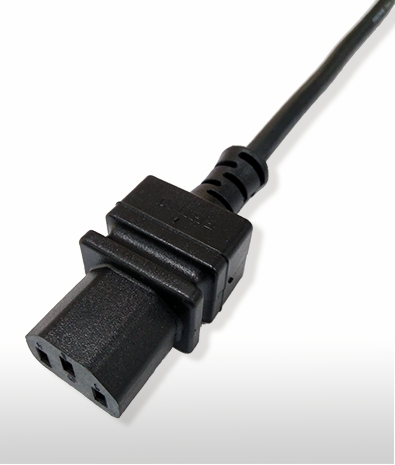

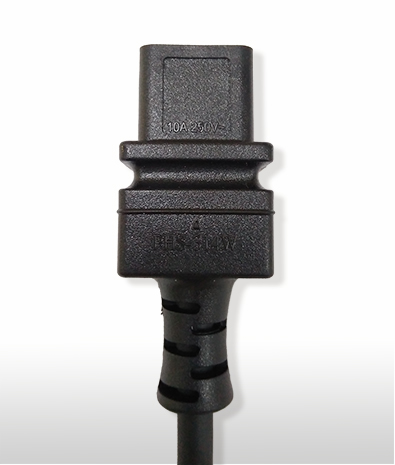

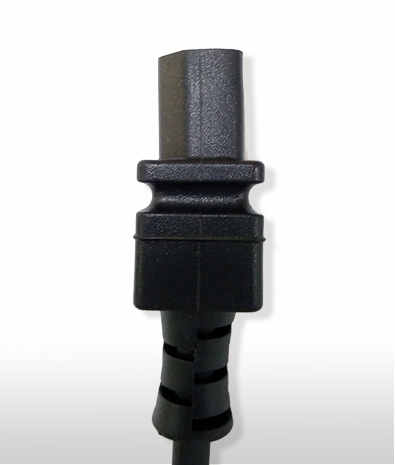

USA C13 3-Pole Straight AC Connector, 10A/15A 125V/250V

Connector p/No
PHS-314W
Voltage
125V/250V
AMP
10A/15A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Certificate
*
Inquiry Cart

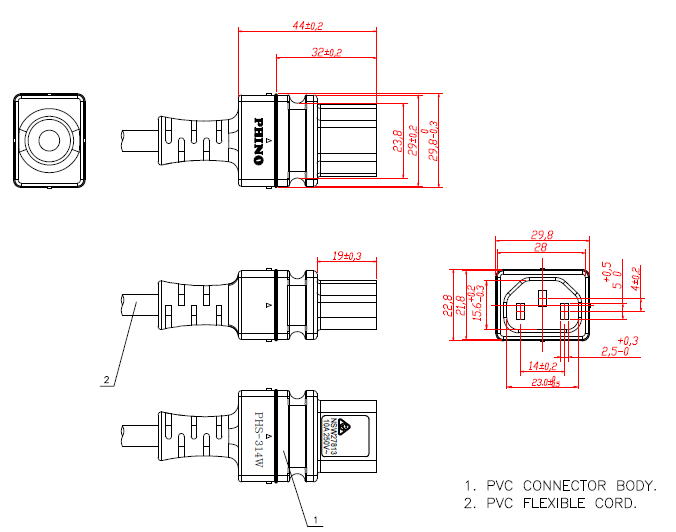

Drawing
UL-817-498-C13 (S314W)
Specifications
Wire TypeSVT AWG 18/3C 17/3C 16/3C
SJT AWG 18/3C 17/3C 16/3C 15/3C 14/3C
SJTW AWG 18/3C 17/3C 16/3C 15/3C 14/3C
SJTO AWG 18/3C 17/3C 16/3C 15/3C 14/3C
Referred StandardUL498 C13
RoHS     ComplianceYes
REACH  Compliance Yes
