USA NEMA 5-15R 3-Pin Straight AC Connector,15A 125V

Connector p/No
PHS-302
Voltage
125V
AMP
15A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Certificate
*
Inquiry Cart

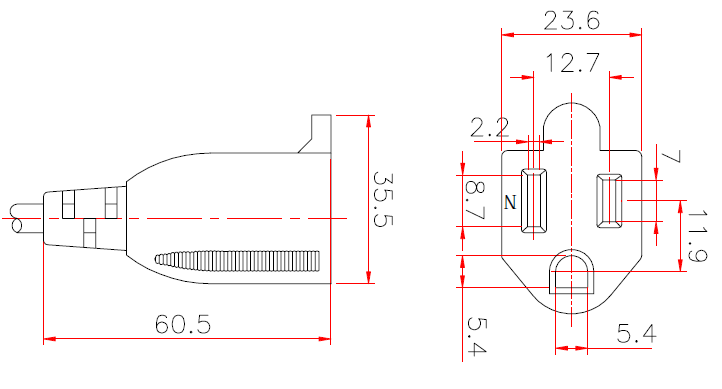

Drawing
NEMA-5-15R (S302)
Specifications

Wire TypeSPT-2         AWG 16/3C 18/3C
SVT           AWG 16/3C  18/3C
SVTO(O)   AWG 16/3C  18/3C
SJT(W)       AWG 18/3C 16/3C 14/3C
SJTO(W)     AWG  18/3C 16/3C 14/3C
SJTOO(W)   AWG 18/3C 16/3C 14/3C
Referred StandardNEMA 5-15R
RoHS     Compliance Yes
REACH  Compliance Yes
