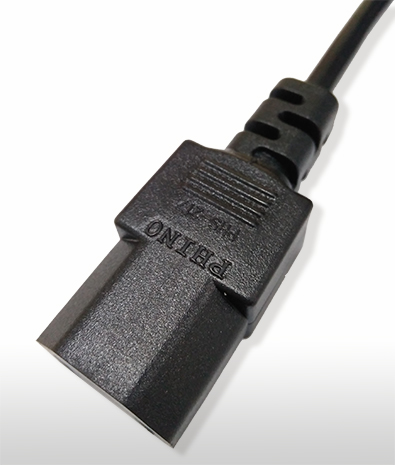

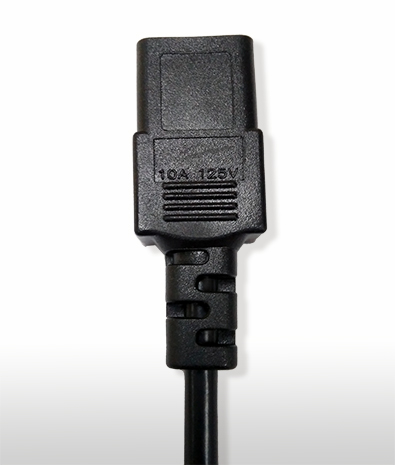

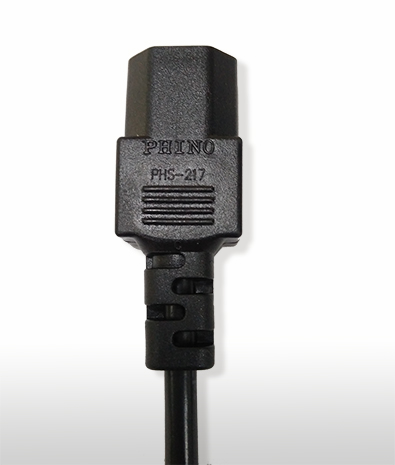

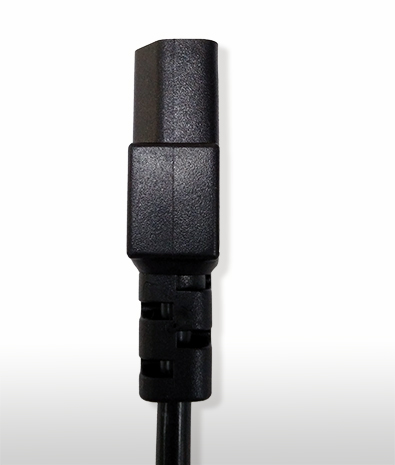

Japan C17 2-Pin Straight AC Connector, 12A/15A 125V

Connector p/No

PHS-217

Voltage

125V

AMP

12A/15A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Certificate

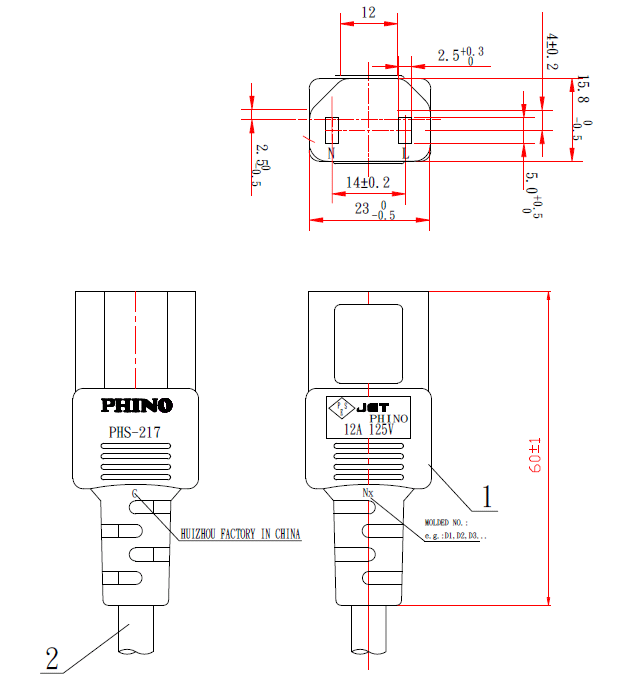

Drawing

JIS-C8303-C17 (S217)

Specifications

Available with Cords	(H)VFF 2×1.25~2.0mm²
	VCT 2×1.25~2.0mm²
	VCTK 2×1.25~2.0mm²
	(H)VCTK 2×1.25~2.0mm²
	(H)VCTF 2×1.25~2.0mm²
	HHVCTFK 2×1.25~2.0 mm²
	HHFF 2×1.25~2.0 mm²
Standard	JIS C8303
RoHS Compliance	Yes
REACH Compliance	Yes
