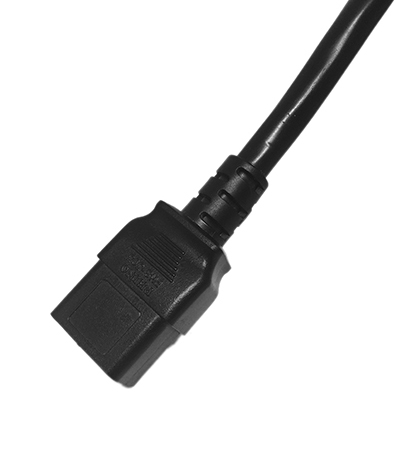

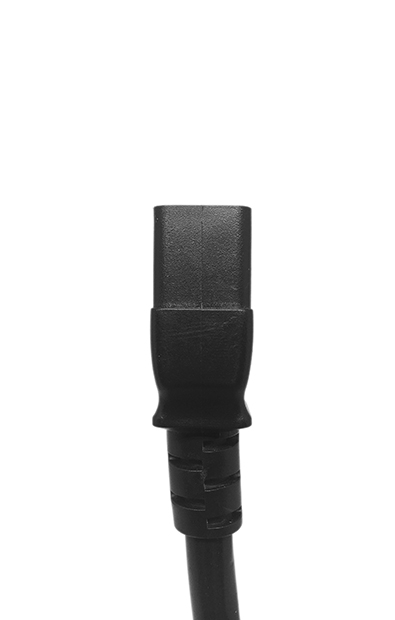

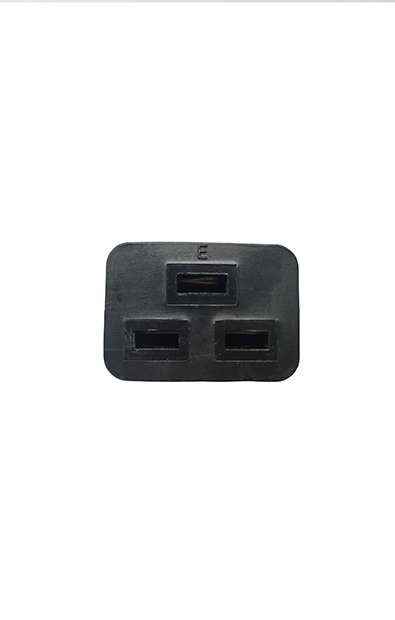

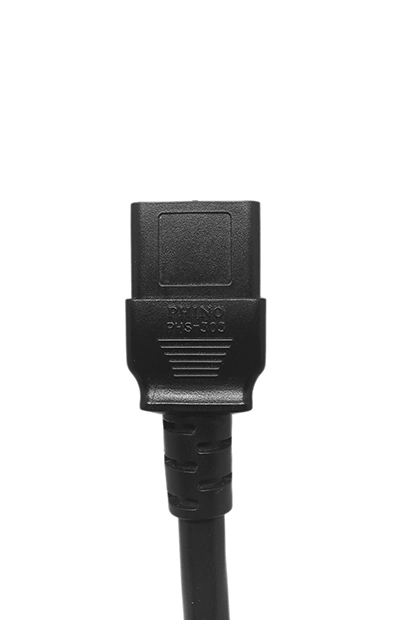

Japan JIS C8303 C19 3-Pin Straight AC Connector, 20A 125V

Connector p/No
PHS-303
Voltage
125V
AMP
20A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Certificate
*
Inquiry Cart

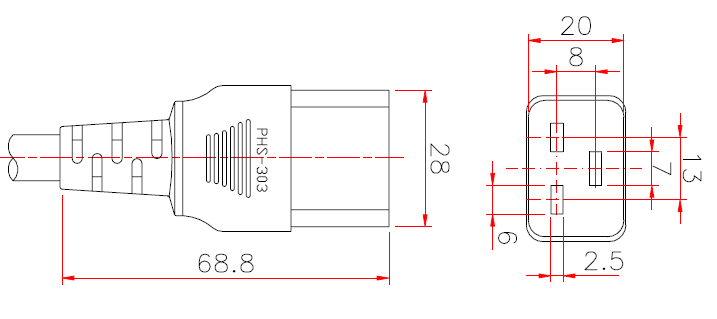

Drawing
JIS-C8303-C19 (S303)
Specifications
Wire Type(H)VCTF   3X2.0~3.5mm2
(H)VCT     3X2.0~3.5mm2
Referred StandardJIS C8303 C19
RoHS     ComplianceYes
REACH  Compliance Yes
