HomeProductsPlugs & Wiring partsAC ConnectorJapanJapan JIS C8303 2-Pin Straight AC Connector, 15A 125V

Products

類別

Plugs & Wiring parts

日本 JIS C8303 AC電源線連接器,2芯直式 15A 125V
日本 JIS C8303 AC電源線連接器,2芯直式 15A 125V
日本 JIS C8303 AC電源線連接器,2芯直式 15A 125V
日本 JIS C8303 AC電源線連接器,2芯直式 15A 125V

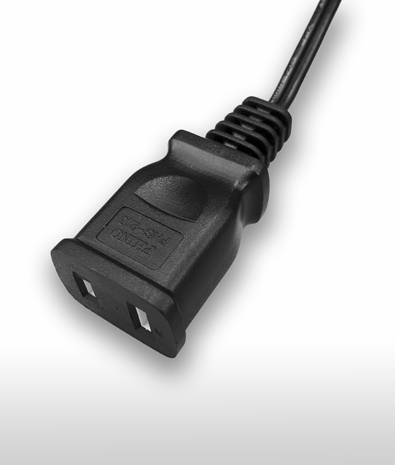

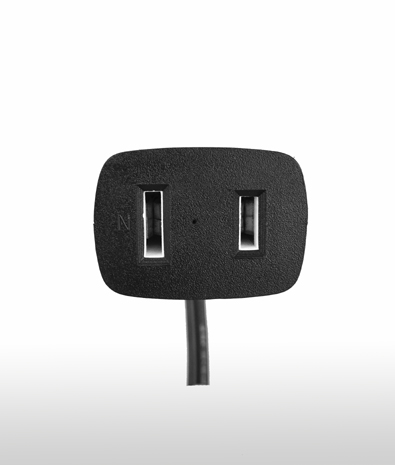

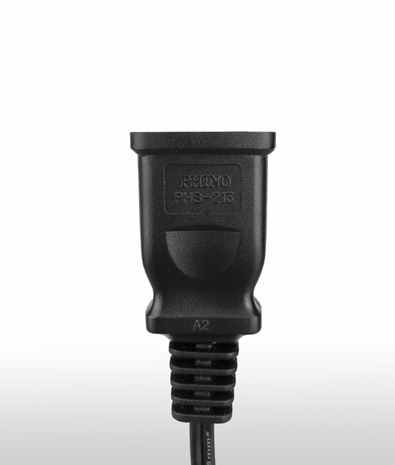

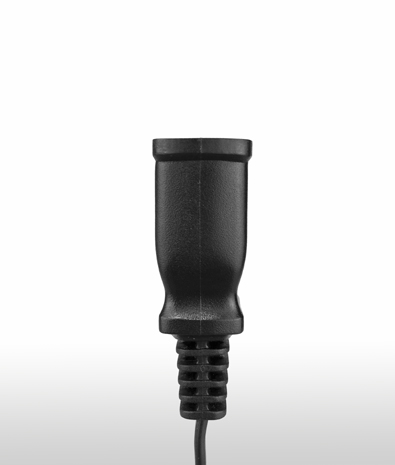

Japan JIS C8303 2-Pin Straight AC Connector, 15A 125V

Connector p/No
PHS-213
Voltage
125V
AMP
15A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Certificate
*
Inquiry Cart

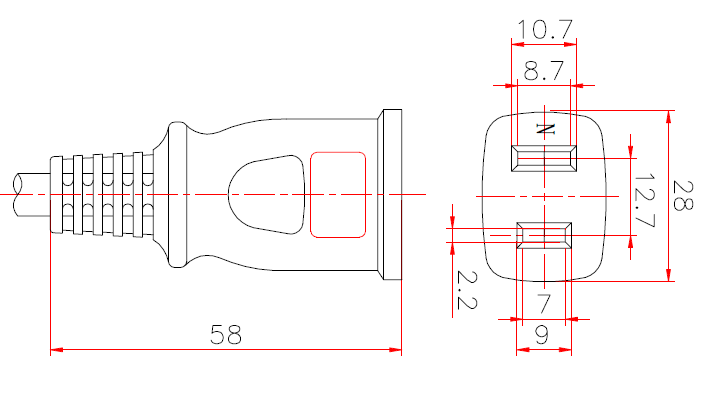

Drawing
JIS-C8303-Connector (S213)
Specifications
Wire Type(H)VFF 2×0.75~2.0 mm2
VCTK 2×0.75~2.0 mm2
(H)VCTFK 2×0.75~2.0 mm2
HHVCTFK 2×0.75~2.0 mm2
HHFF 2×0.75~~2.0 mm2
Referred StandardJIS C8303
RoHS     ComplianceYes
REACH  Compliance Yes
