日本 JIS C8303 C1 AC電源線連接器,2芯直式 7A 125V
日本 JIS C8303 C1 AC電源線連接器,2芯直式 7A 125V
日本 JIS C8303 C1 AC電源線連接器,2芯直式 7A 125V
日本 JIS C8303 C1 AC電源線連接器,2芯直式 7A 125V

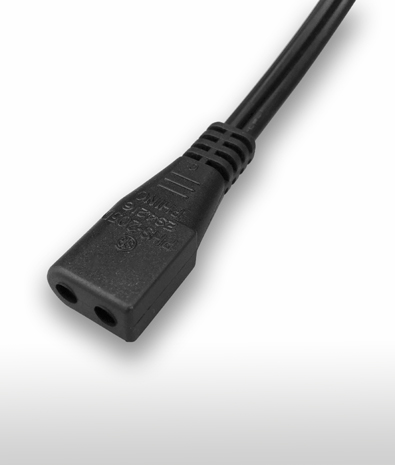

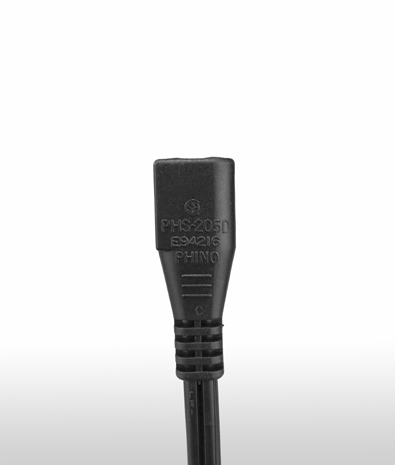

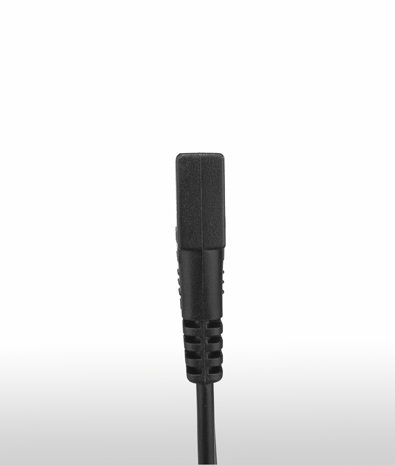

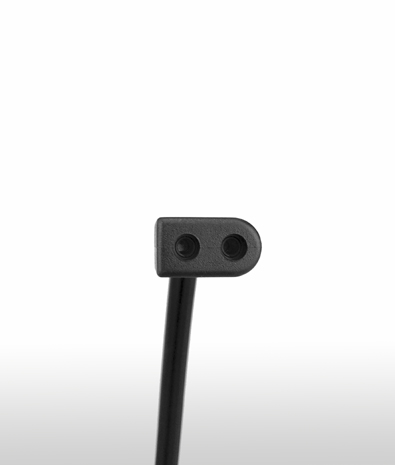

Japan JIS C8303 C1 2-Pin Straight AC Connector, 7A 125V

Connector p/No
PHS-205D
Voltage
125V
AMP
7A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Certificate
*
Inquiry Cart

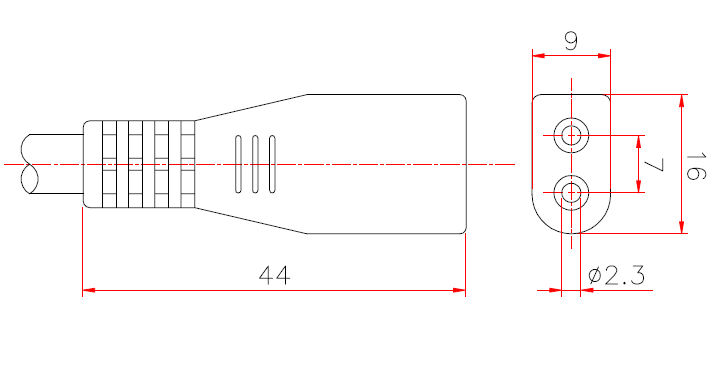

Drawing
JIS-C8303-C1 (S205D)
Specifications
Wire Type(H)VFF 2×0.75~2.0 mm2
VCTK  2×0.75~2.0 mm2
(H)VCTFK 2×0.75~2.0 mm2
HHVCTFK 2×0.75~2.0 mm2
HHFF 2×0.75~2.0 mm2
Referred StandardJIS C8303 C1
RoHS      ComplianceYes
REACH    ComplianceYes
