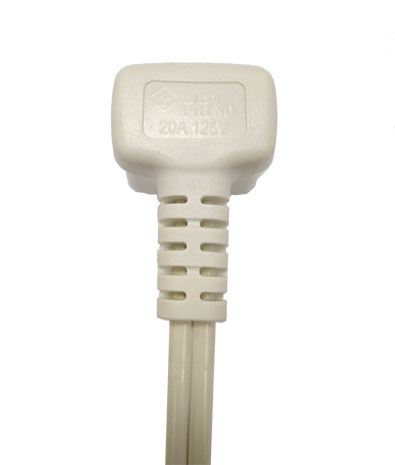

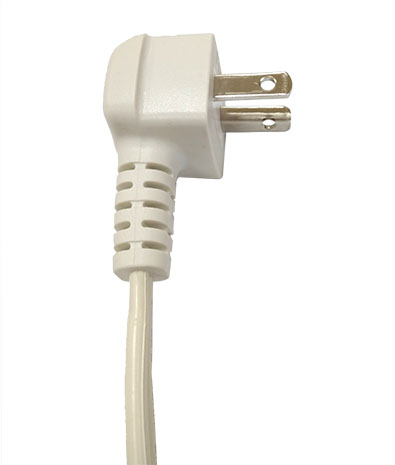

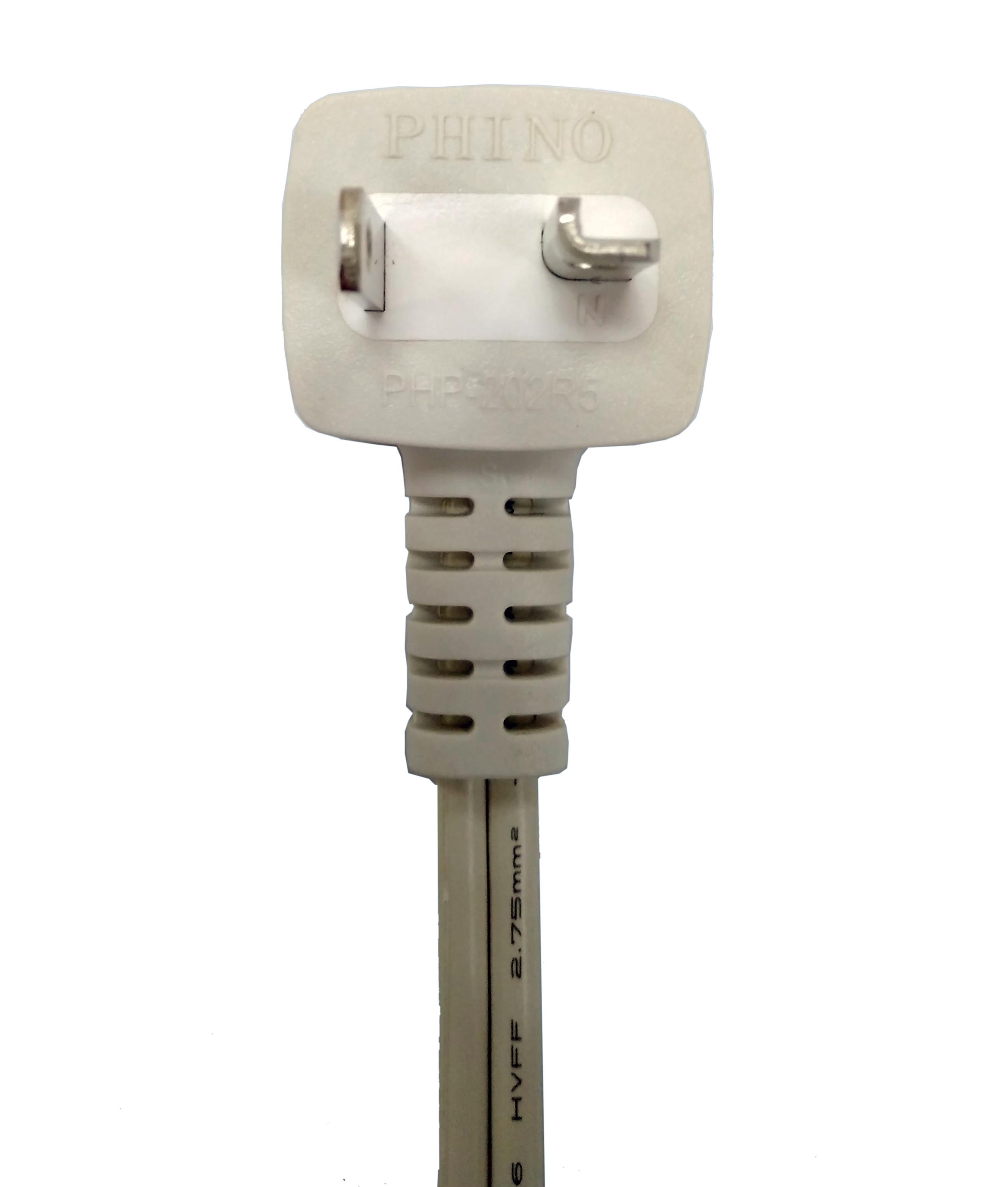

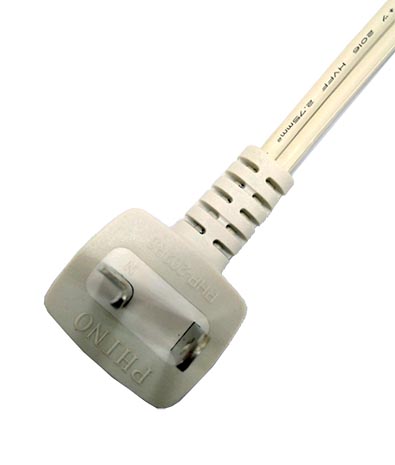

Japan 2-Pin Non-Grounded, Angle Type AC Plug, 20A 125V

Plug P/No

PHP-202R5

Voltage

125V

AMP

20A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Certificate

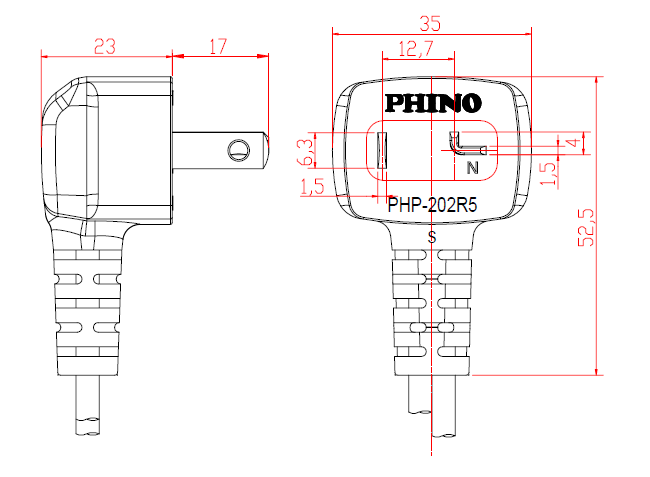

Drawing

JIS-C8303 (P202R5)

Specifications

Available with Cords	(H)VFF 2 × 2.0~3.5 mm²
	(H)VCTFK 2 × 2.0~3.5 mm²
	HHVCTFK 2 × 2.0~3.5mm²
	HHFF 2 × 1.25~2.0 mm²
Standard	JIS C8303
RoHS Compliance	Yes
REACH Compliance	Yes
