Voltage

125V

AMP

10A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Plug P/No

IEC 60320 C20 / PHP-336

Plug AMP/Voltage

16A 250V

Connector p/No

IEC 60320 C19 / PHS-303

Connector AMP/Voltage

16A 250V

Certificate

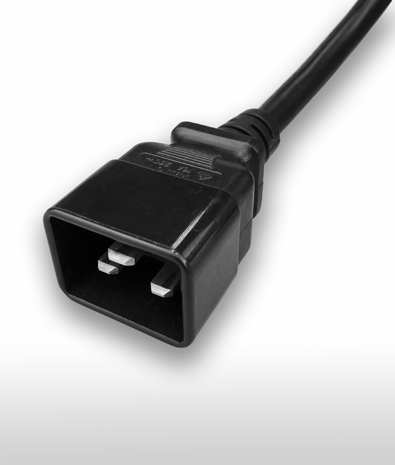

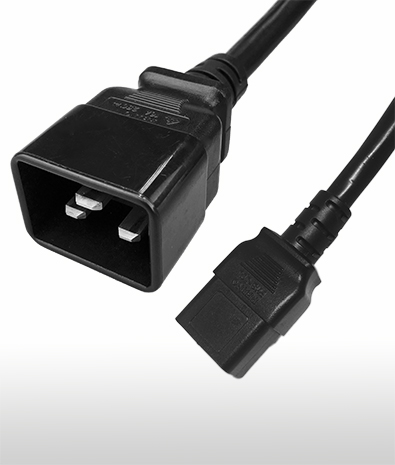

The IEC 60320 C20 (Male) is a 3 pins grounded plug rated up to 250V and 16A. The C20 mates with a C19 outlet and is typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C20 is in a jumper cable scenario, providing power from a PDU to a blade server chassis, high powered server, large network router, or similar device.

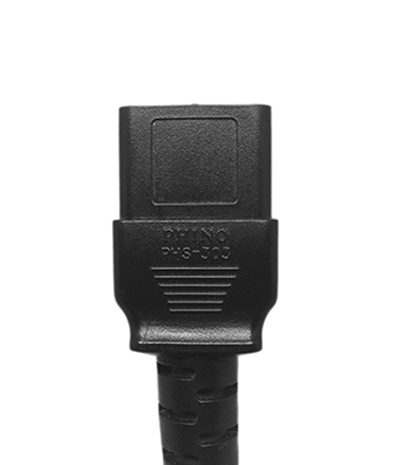

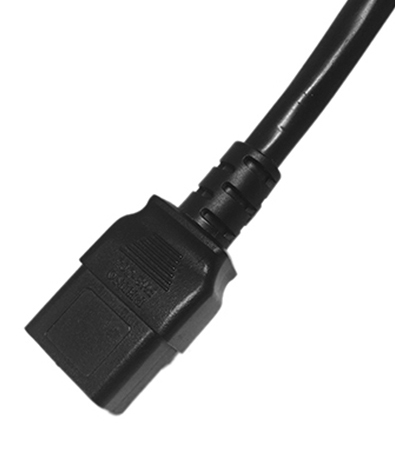

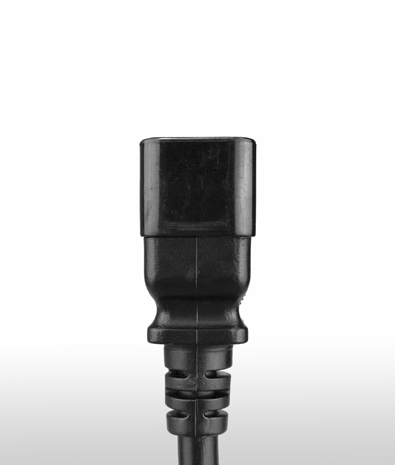

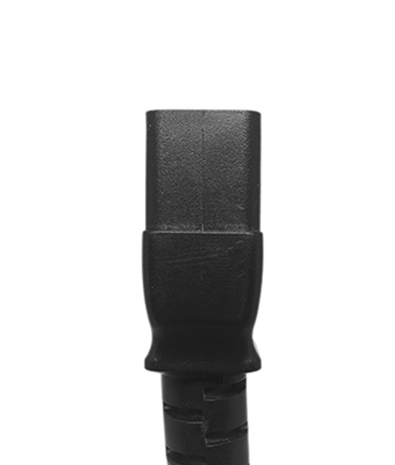

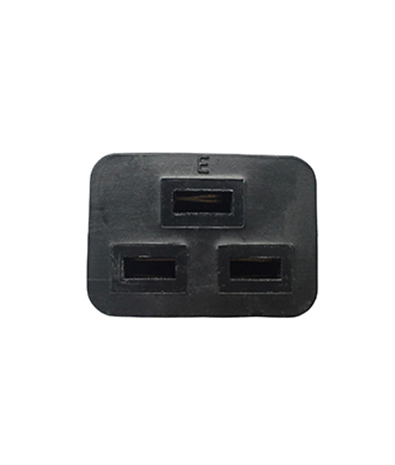

The IEC 60320 C19 (Female) is a 3 pins grounded connector rated up to 250V and 16A. The C19 mates with a C20 inlet and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
