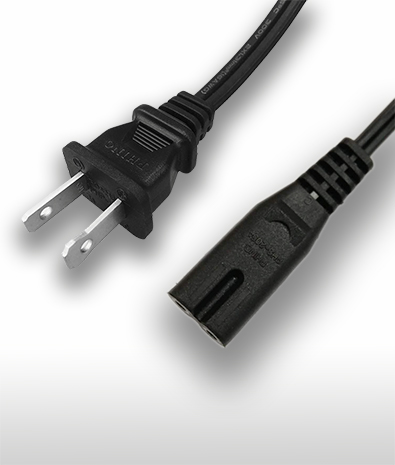

USA NEMA 1-15P To IEC 60320 C7, 2-Pin AC Power Cord_Products | AC power cord, plugs, sockets and wire harness manufacturer Phino Electric

Products

Voltage

125V

AMP

10A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Plug P/No

NEMA 1-15P / PHP-201

Plug AMP/Voltage

10A 125V

Connector p/No

IEC 60320 C7 / PHS-205A

Connector AMP/Voltage

7A 125V

Certificate

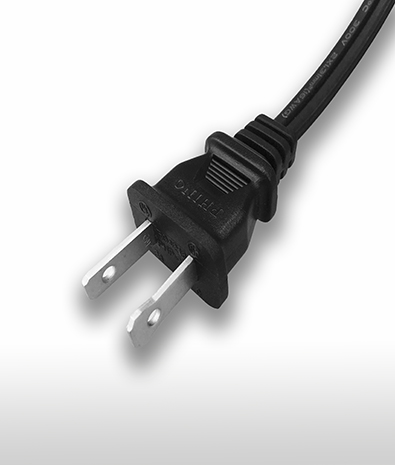

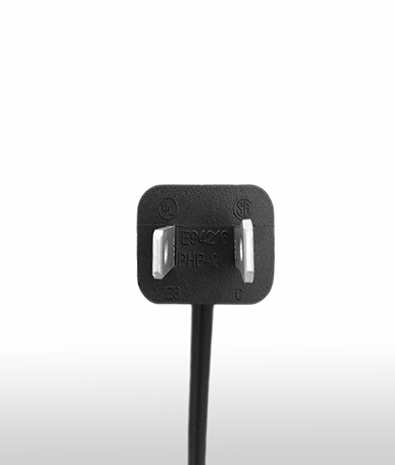

The NEMA 1-15P (Male) is a 2 pins ungrounded plug rated up to 125V and 15A in America. NEMA 1-15P is compatible with the NEMA 5-15R outlet. This plug can be (polarized) or (non-polarized), a polarized 1-15P will have unequal blades to prevent harm to devices attached.

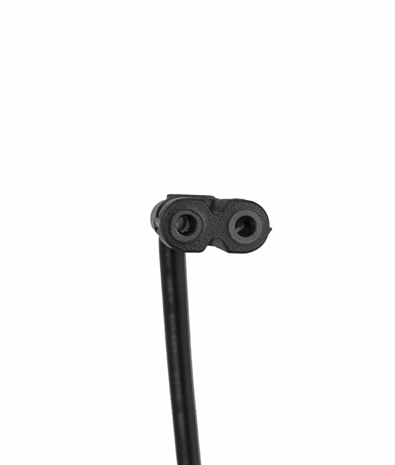

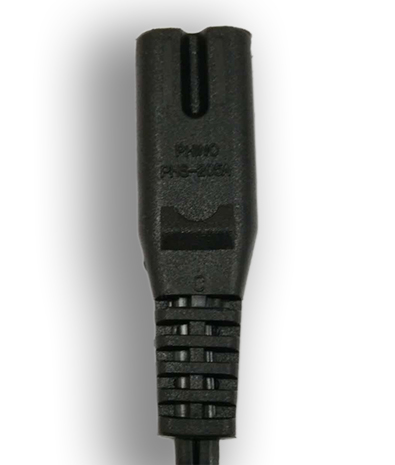

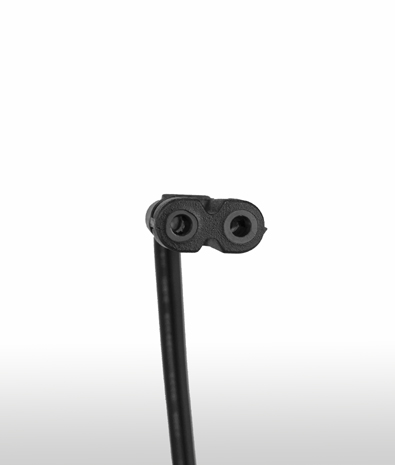

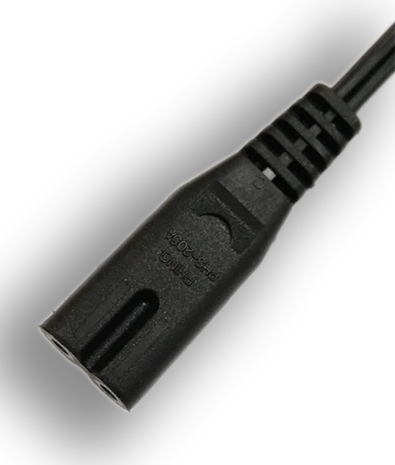

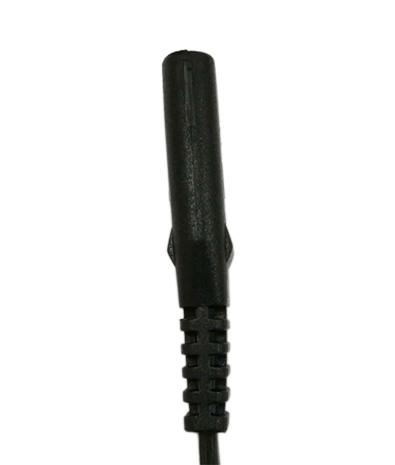

The IEC 60320 C7 (Female) is a 2 pins ungrounded connector rated up to 125V and 7A in America. The C7 mates with a C8 inlet and is commonly used for laptop power supplies, video game consoles, televisions, and other double-insulated small appliances. This connector is sometimes referred to as a (Figure-8) or (Shotgun) connector due to it's shape. The C7P has one square side and one circular side so the connector only mates with the inlet using the correct pin configuration.
