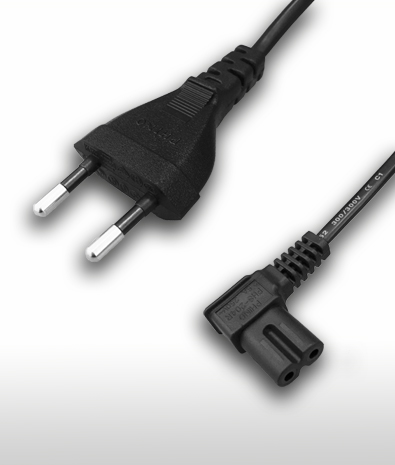

Holland CEE 7/16 Plug To IEC 60320 C7 Right Angle Connector,_Products | AC power cord, plugs, sockets and wire harness manufacturer Phino Electric

Products

Voltage

250V

AMP

2.5A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Plug P/No

CEE 7/16 / PHP-205

Plug AMP/Voltage

2.5A 250V

Connector p/No

IEC 60320 C7 / PHS-204R

Connector AMP/Voltage

2.5A 250V

Certificate

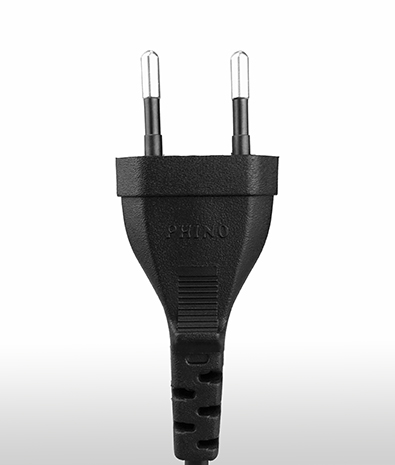

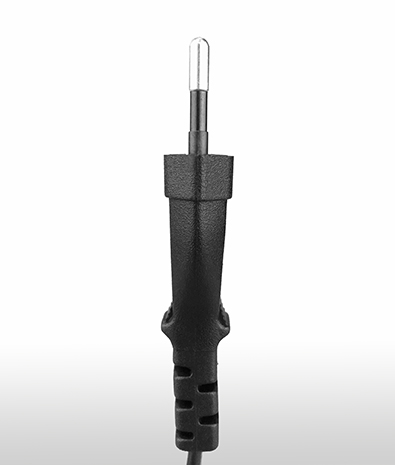

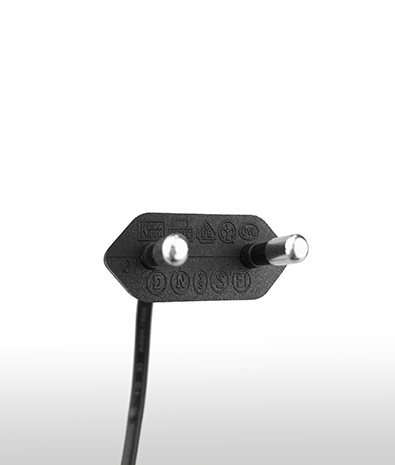

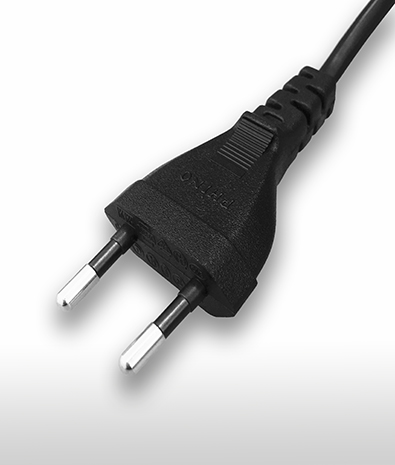

The CEE 7/16 (Male) is a 2 pins flat plugs rated up to 250V and 2.5A. it is also defined by Cenelec standard EN 50075 (Flat non-rewirable two-pole plugs, 2.5A 250V, with cord, for the connection of class II-equipment for household and similar purposes) which has national equivalents in most European countries, as described in IEC 60083. The Europlug is not rewirable and must be supplied with a flexible cord. Because it is unpolarised, it can be inserted in either direction into a socket, so line and neutral are connected arbitrarily.

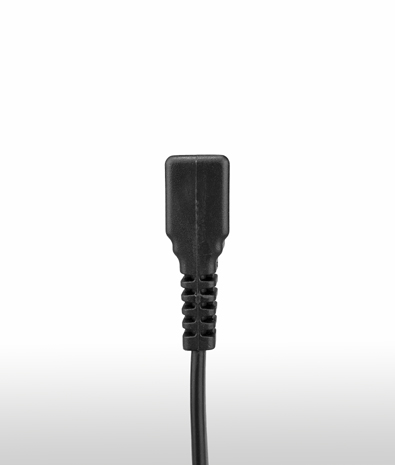

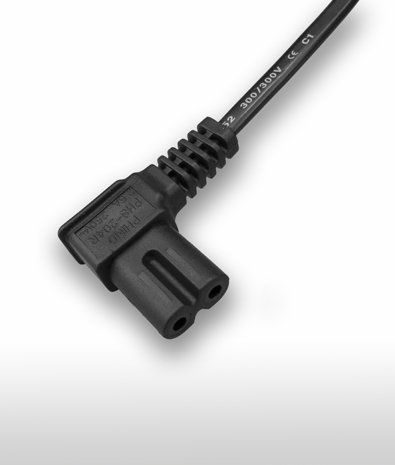

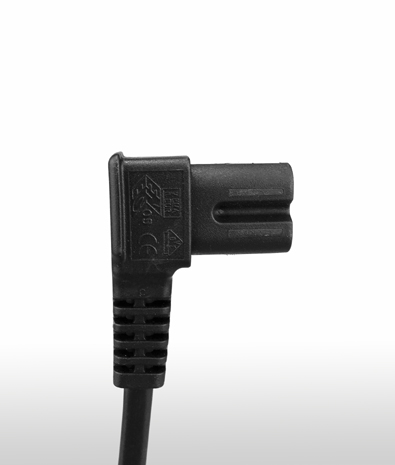

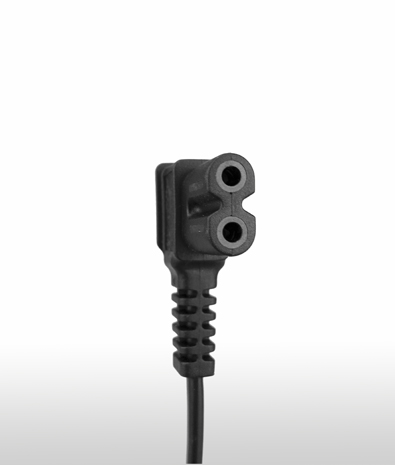

The IEC 60320 C7 (Female) is a 2 pins ungrounded connector rated up to 250V and 2.5A. The C7 mates with a C8 inlet and is commonly used for laptop power supplies, video game consoles, televisions, and other double-insulated small appliances. This connector is sometimes referred to as a (Figure-8) or (Shotgun) connector due to it's shape. The C7P has one square side and one circular side so the connector only mates with the inlet using the correct pin configuration.
