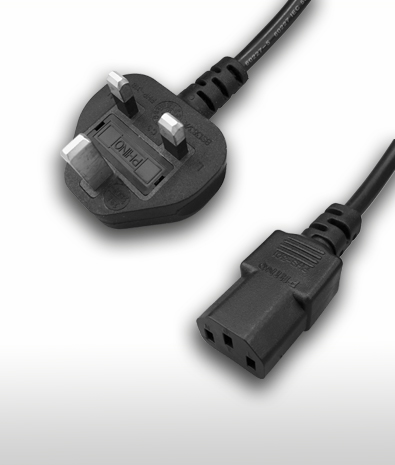

Saudi Arabia SASO 2203 Angle Plug To IEC 60320 C13 Connector
Voltage
220VAMP
10AColor
Black or customized products can be offered upon requestsMaterial
PVCMin. Order Q’ty
1000PCSProduction capacity
500000PCS/MonthPlug P/No
SASO 2203:2015 / PHP-318Plug AMP/Voltage
13A 220VConnector p/No
IEC 60320 C13 / PHS-301Connector AMP/Voltage
10A 250VCertificate

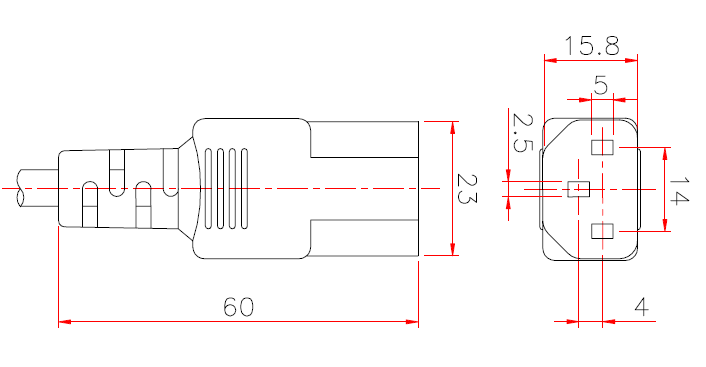

Drawing
.png)
.png)
Specifications
| Wire Type | H05VV-F 3G1.0mm2 |
| Referred Standard | IEC 60799 |
| RoHS Compliance | Yes |
| REACH Compliance | Yes |

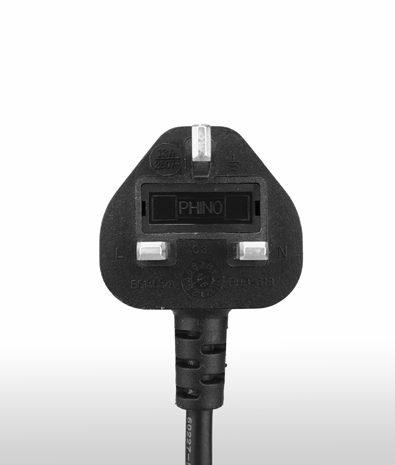

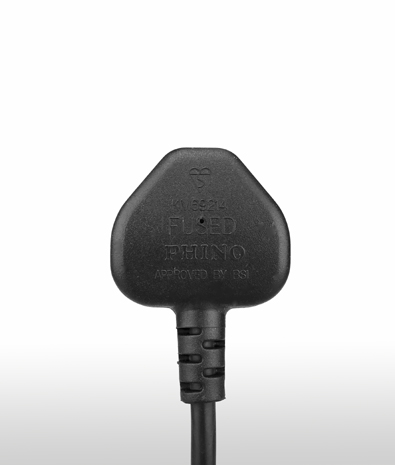

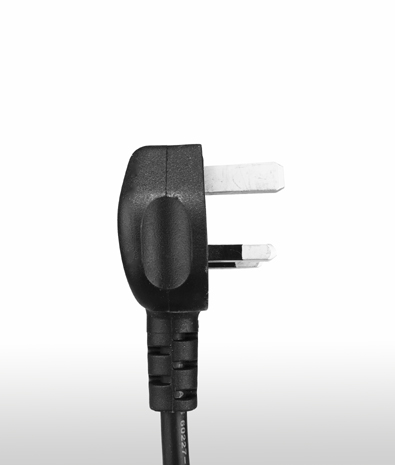

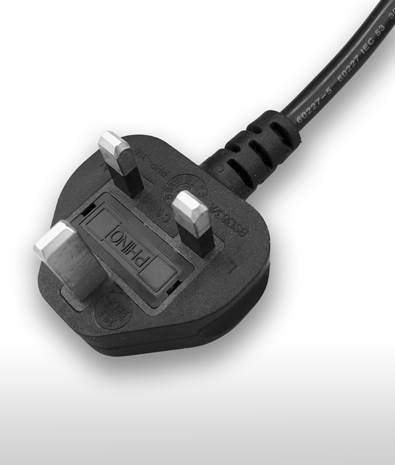

- The SASO 2203:2015 (Male) is a 3 pins grounded plug rated up to 250V and 13A(same as the UK BS1363 plug). It has three rectangular pins forming an isosceles triangle. The SASO 2203:2015 plug has a fuse which is suitably rated to protect the appliance's flexible cord from overload.

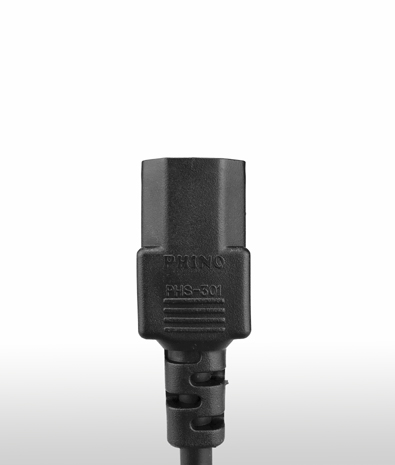

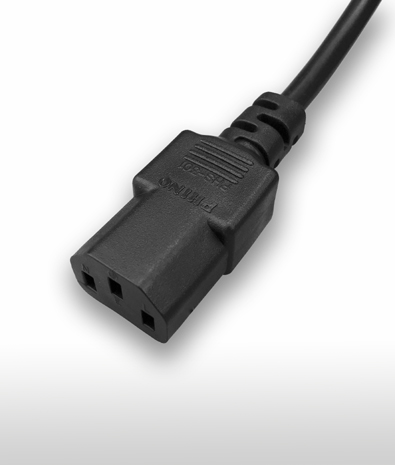

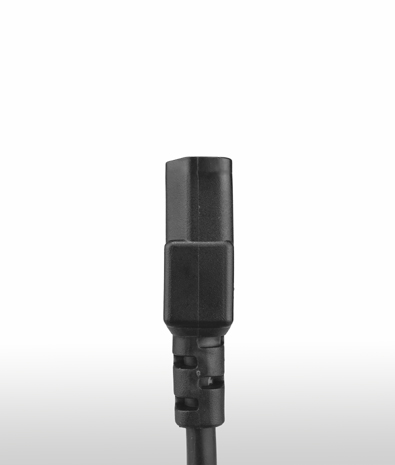

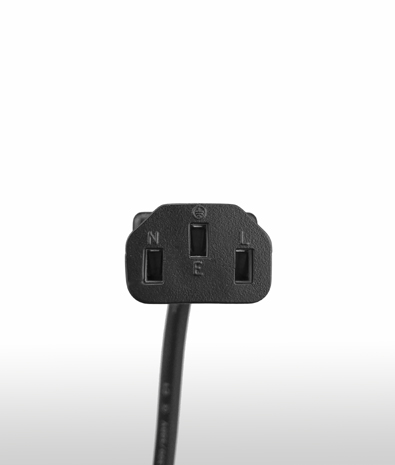

- The IEC 60320 C13 (Female) is a 3 pins grounded connector rated up to 250V and 10A. The C13 mates with a C14 inlet and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C13 is the standard connector used to power most desktop computers.
